Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

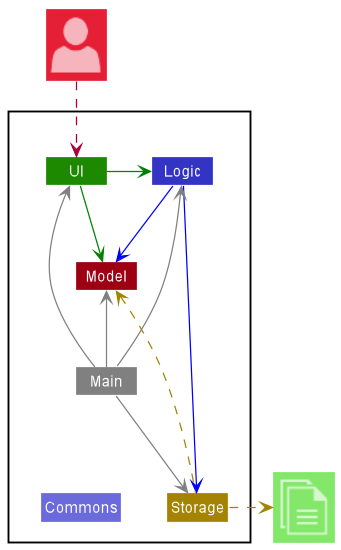

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

• At app launch: Initializes the components in the correct sequence, and connects them up with each other.
• At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

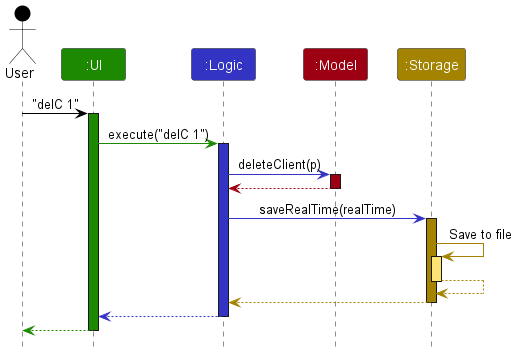

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delC 1.

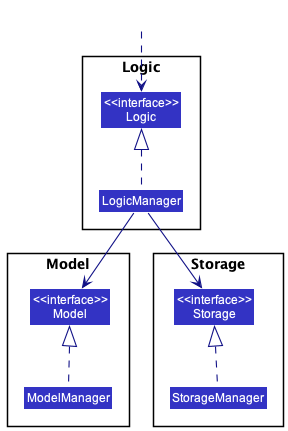

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

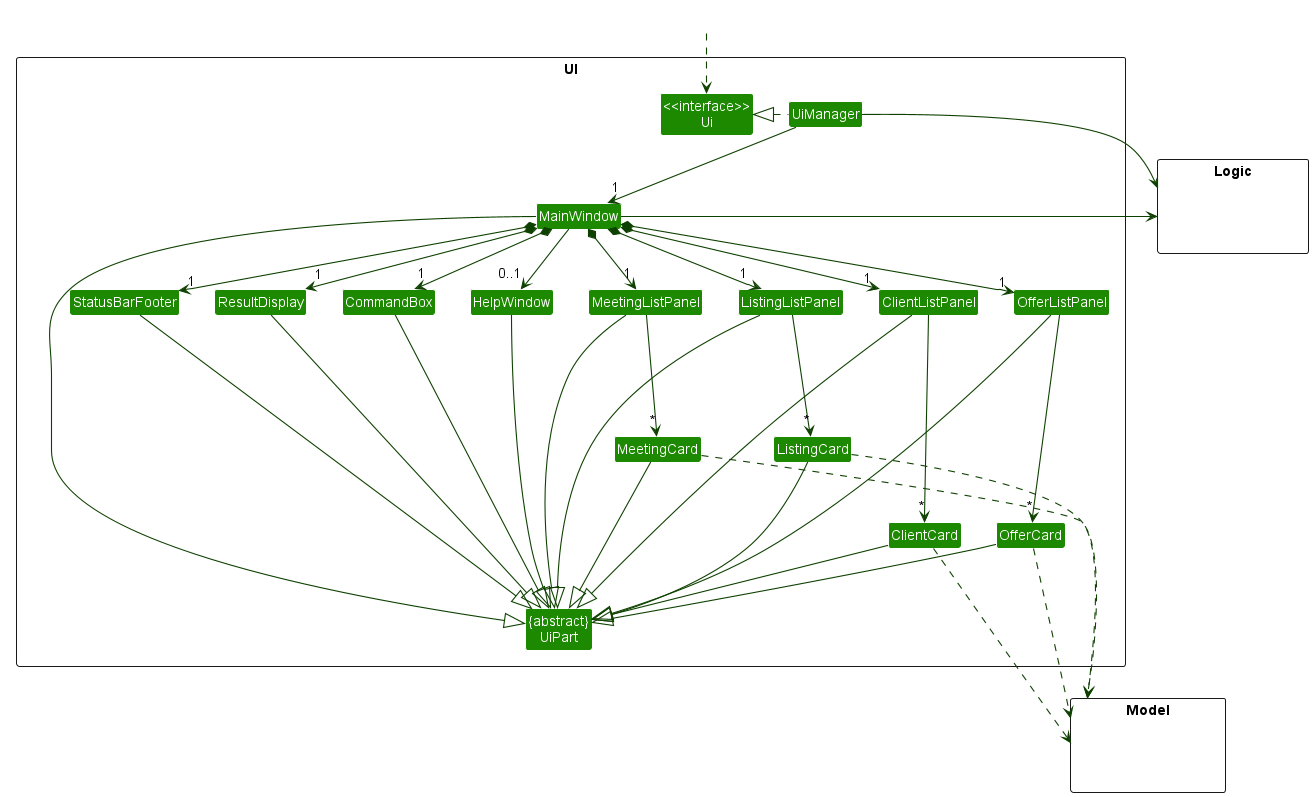

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Client object residing in the Model.

Logic component

API : Logic.java

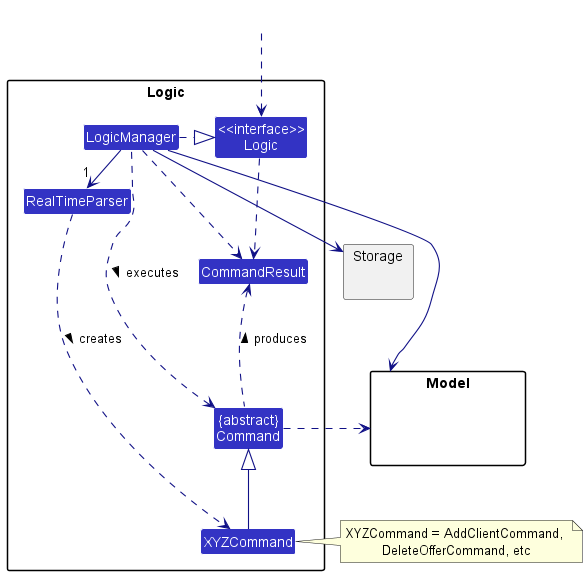

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

1. When Logic is called upon to execute a command, it uses the RealTimeParser class to parse the user command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddClientCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to add a person).
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

The Sequence Diagram below illustrates the interactions within the Logic component for the execute("delC 1") API call.

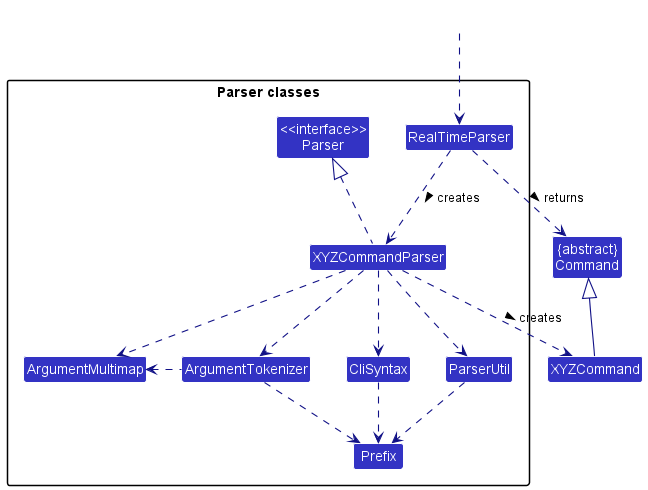

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the RealTimeParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddClientCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddClientCommand) which the RealTimeParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddClientCommandParser, DeleteOfferCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

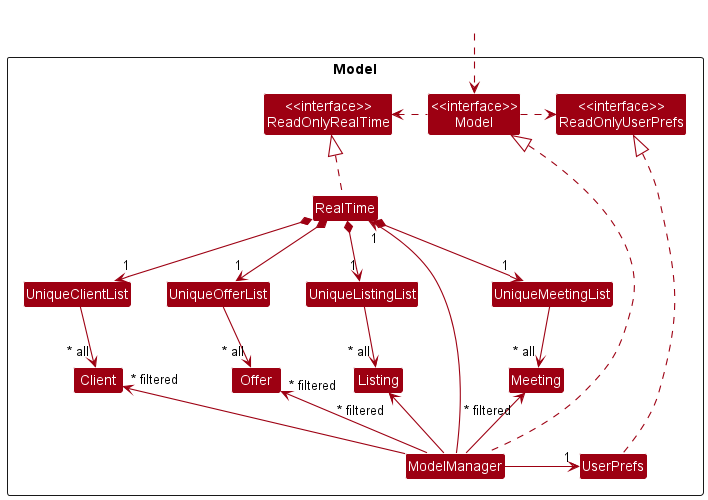

Model component

API : Model.java

The Model component,

• stores the data in RealTime i.e., all Client, Offer, Listing and Meeting objects (which are contained in a UniqueClientList, UniqueOfferList, UniqueListingList and UniqueMeetingList object respectively).
• stores the currently ‘selected’ Client, Offer, Listing and Meeting objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Client>, ObservableList<Offer>, ObservableList<Listing> and ObservableList<Meeting> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

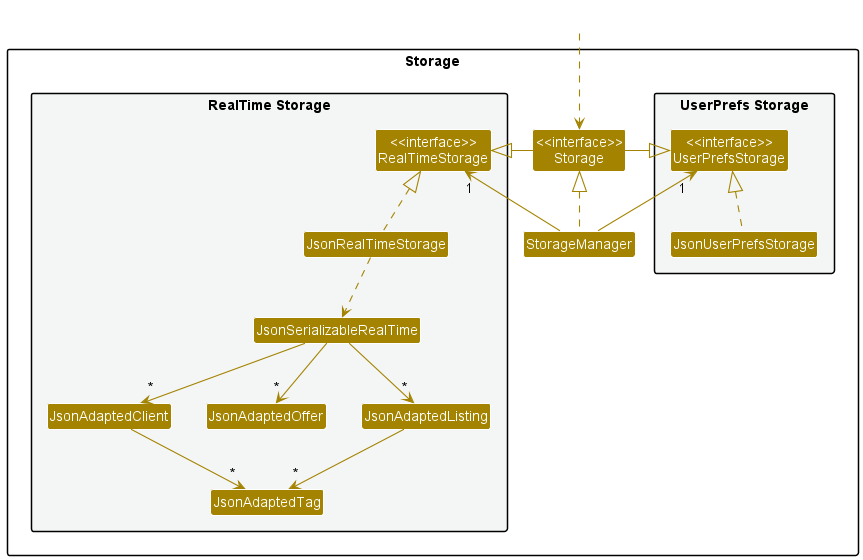

Storage component

API : Storage.java

The Storage component,

• can save both RealTime data and user preference data in json format, and read them back into corresponding objects.
• inherits from both RealTimeStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.realtime.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedRealTime. It extends RealTime with an undo/redo history, stored internally as an RealTimeStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedRealTime#commit() — Saves the current address book state in its history.
• VersionedRealTime#undo() — Restores the previous address book state from its history.
• VersionedRealTime#redo() — Restores a previously undone address book state from its history.

These operations are exposed in the Model interface as Model#commitRealTime(), Model#undoRealTime() and Model#redoRealTime() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

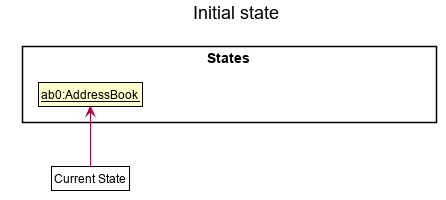

Step 1. The user launches the application for the first time. The VersionedRealTime will be initialized with the initial address book state, and the currentStatePointer pointing to that single address book state.

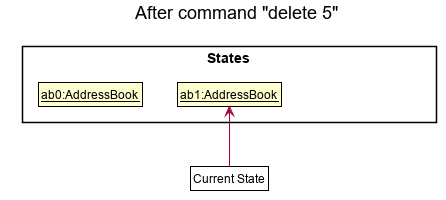

Step 2. The user executes delete 5 command to delete the 5th person in the address book. The delete command calls Model#commitRealTime(), causing the modified state of the address book after the delete 5 command executes to be saved in the realTimeStateList, and the currentStatePointer is shifted to the newly inserted address book state.

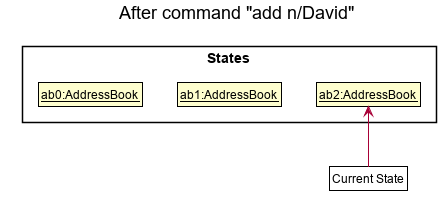

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#commitRealTime(), causing another modified address book state to be saved into the realTimeStateList.

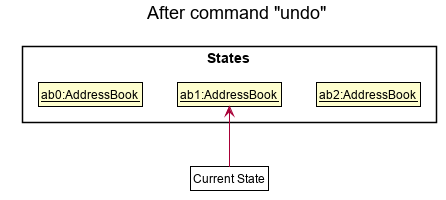

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoRealTime(), which will shift the currentStatePointer once to the left, pointing it to the previous address book state, and restores the address book to that state.

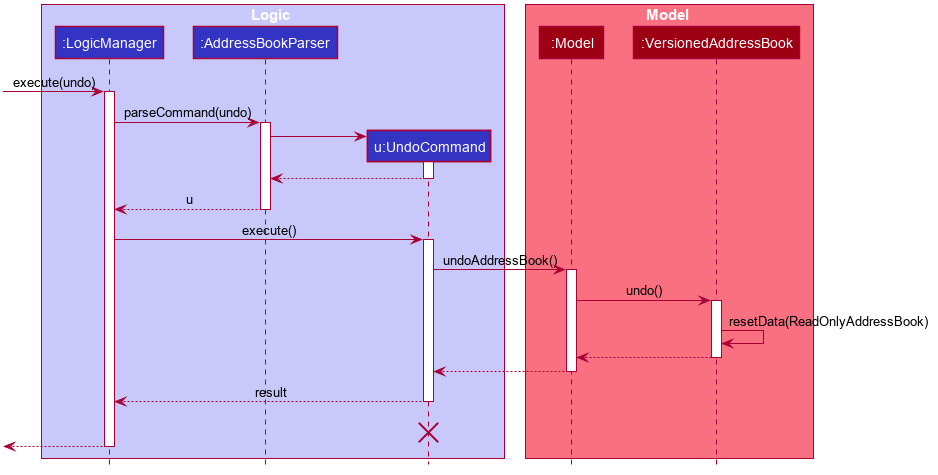

The following sequence diagram shows how the undo operation works:

The redo command does the opposite — it calls Model#redoRealTime(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the address book to that state.

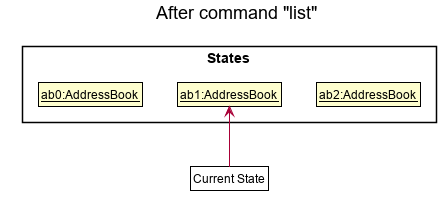

Step 5. The user then decides to execute the command list. Commands that do not modify the address book, such as list, will usually not call Model#commitRealTime(), Model#undoRealTime() or Model#redoRealTime(). Thus, the realTimeStateList remains unchanged.

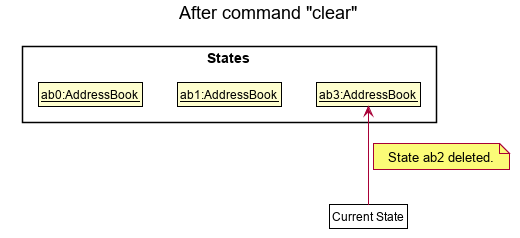

Step 6. The user executes clear, which calls Model#commitRealTime(). Since the currentStatePointer is not pointing at the end of the realTimeStateList, all address book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

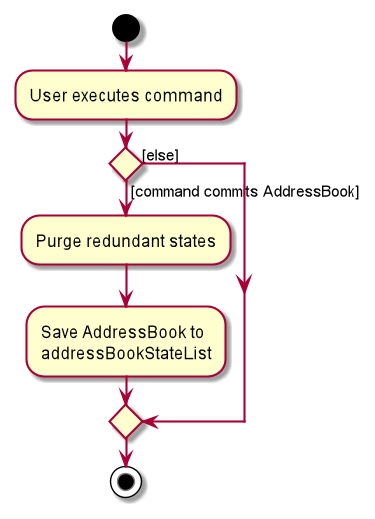

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire address book.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

[Implemented] Add Client feature

Client

REal-Time manages Clients of the user.

Implementation

To add an Client object, the AddClientCommand must be executed. This stores the Client object into the UniqueClientList. Following the command execution pathway, the implementation of adding clients uses the exposed Model#addClient(Client) method in the Model API.

The AddClientCommand is parsed by the AddClientCommandParser. AddClientCommandParser#parse() parses the user input to return a AddClientCommand object that will be executed.

Given below is an example usage scenario and how the add clients mechanism behaves at each step.

Step 1. The user opens up the REal-Time application for the first time and observes that there are some sample data in the UniqueClientList.

Step 2. The user keys in the command word for adding a client, addC, followed by the compulsory parameters needed to add a client, namely the Name component prefixed by n/, Phone number component prefixed by p/, the Email address component prefixed by e/, the Address component prefixed by a/ and the optional Tag component prefixed by t/. In this scenario, the user keys in addC n/John Doe p/12345678 e/john@gmail.com a/123 John Avenue t/friend t/ neighbor into the command box which will execute the AddClientCommandParser to check through the arguments and ensure that the compulsory fields are present. It will then create the Name, Phone, Email, Address and Tag objects needed to instantiate an Client object. The parser returns a AddClientCommand object with the Client object ready to be added into Model

Step 3. The AddClientCommand calls the Model#addClient(Client) to add the client and its relevant attributes.

Step 4. Depending on whether the UniqueClientList already contains data or is an empty list, the added Client will be sorted automatically by the ListingId in lexicographical order. This is done using the Collections#sort() method and implementing a natural order by implementing the Comparable interface and overriding the Comparable#compareTo() method.

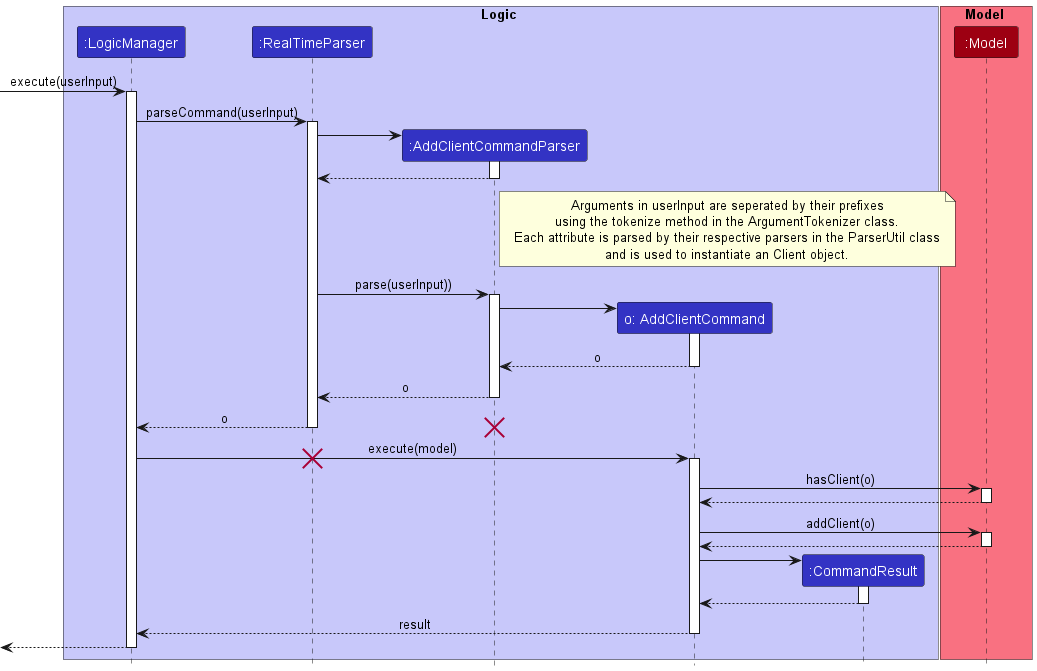

The sequence diagram below shows the add client process.

Design considerations

Aspect: Client-Listing interaction

• Alternative 1 (current choice): Separate Listings and Client objects
  • Pros: Easier to maintain as they are separate objects, less dependency between each other
  • Cons: No reference between the Client and Listing objects
• Alternative 2: Allow Clients to have a Listing attribute instead
  • Pros: Easier to reference between Client and Listing
  • Cons: Large dependency between the two.

[Implemented] Delete Client feature

The Delete Client feature allows users to delete the specified Client in the UniqueClientList.

Implementation

To delete an Client object, the DeleteClientCommand must be executed. The DeleteClientCommand extends the Command class.

The DeleteClientCommand is parsed by the DeleteClientCommandParser. DeleteClientCommandParser#parse() parses the user input to return a DeleteClientCommand that will be executed.

Given below is an example usage scenario and how the delete client mechanism behaves at each step.

Step 1. The user enters delL 1 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a DeleteClientCommand after parsing.

Step 2. A DeleteClientCommandParser object is instantiated with the necessary arguments. It will return a DeleteClientCommand object with the specified Index.

Step 3. The DeleteClientCommand#execute() method is called which calls the Model#deleteClient(Client) method to delete the Client at the specified Index in Model.

The sequence diagram below shows the delete client process.

Design considerations

Aspect: Using index specific or attribute specific deletion

• Alternative 1 (current choice): Index specific
  • Pros: Easier implementation and more suited for fast-typing
  • Cons: Might accidentally delete the wrong Client if Index is mistyped
• Alternative 2: Attribute specific
  • Pros: User does not have to find for specific Index
  • Cons: Many Client objects might share same attribute such as Address and Phone Number

[Implemented] Edit Client feature

The Edit Client feature allows users to edit any attribute of an Client in the UniqueClientList.

Implementation

To edit an Client, the EditClientCommand is executed. The EditClientCommand extends the Command class.

The EditClientCommand is parsed by the EditClientCommandParser. EditClientCommandParser#parse() parses the user input to return a EditClientCommand that will be executed.

Given below is an example usage scenario and how the edit client mechanism behaves at each step.

Step 1. The user enters editC 1 n/Jane Doe p/87654321 a/123 Jane Lane in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a EditClientCommand after parsing.

Step 2. An EditClientCommandParser object is instantiated with the necessary arguments. It returns a EditClientCommand with the Index and EditClientDescriptor as parameters. The EditClientDescriptor contains the edited information that the edited Client is supposed to be updated to. In this scenario, we are changing the Name, Phone and Address attribute of the Client. The EditClientDescriptor is then updated through the setName(), setName() and setAddress() methods by the EditClientDescriptor.

Step 3. The EditClientCommand#execute() method is called which creates the edited Client using the createEditedClient method which takes in the Client to be edited and the EditClientDescriptor that was created from the previous step. The edited Client is then checked if it is a duplicate or already exists in the UniqueClientList through the Client#isSameClient() and Model#hasClient() methods.

An Client is the same if it contains the exact same Name.

Step 4. The Model#setClient(Client) method is called to replace the target Client at the specified Index from earlier. The Model#updateFilteredClientList() is called to update the UniqueClientList.

[Implemented] Add Offer feature

Offers

REal-Time manages Offers made by Clients that are interested when bidding for Listings.

Implementation

To add an Offer object, the AddOfferCommand must be executed. This stores the Offer object into the UniqueOfferList. Following the command execution pathway, the implementation of adding clients uses the exposed Model#addOffer(Offer) method in the Model API.

The AddOfferCommand is parsed by the AddOfferCommandParser. AddOfferCommandParser#parse() parses the user input to return a AddOfferCommand object that will be executed.

Given below is an example usage scenario and how the add clients mechanism behaves at each step.

Step 1. The user opens up the REal-Time application for the first time and observes that there are some sample data in the UniqueOfferList.

Step 2. The user keys in the command word for adding a client, addO, followed by the compulsory parameters needed to add a client, namely the Name component prefixed by n/, Price component prefixed by o/ and the ListingId component prefixed by l/. In this scenario, the user keys in addO n/John Doe l/BEDOK_SOUTH o/600000 into the command box which will execute the AddOfferCommandParser to check through the arguments and ensure that the compulsory fields are present. It will then create the Price, ListingId and Name objects needed to instantiate an Offer object. The parser returns a AddOfferCommand object with the Offer object ready to be added into Model

Step 3. The AddOfferCommand calls the Model#addOffer(Offer) to add the client and its relevant attributes.

Step 4. Depending on whether the UniqueOfferList already contains data or is an empty list, the added Offer will be sorted automatically by the ListingId in lexicographical order. This is done using the Collections#sort() method and implementing a natural order by implementing the Comparable interface and overriding the Comparable#compareTo() method.

The sequence diagram below shows the add client process.

Design considerations

Aspect: Client-Offer interaction

• Alternative 1 (current choice): Separate Offers and Client objects
  • Pros: Easier to maintain as they are separate objects, less dependency between each other
  • Cons: No reference between the Client and Offer objects
• Alternative 2: Allow Clients to have an Offer attribute instead
  • Pros: Easier to reference between Client and Offer
  • Cons: Large dependency between the two.

[Implemented] Delete Offer feature

The Delete Offer feature allows users to delete the specified Offer in the UniqueOfferList.

Implementation

To delete an Offer object, the DeleteOfferCommand must be executed. The DeleteOfferCommand extends the Command class.

The DeleteOfferCommand is parsed by the DeleteOfferCommandParser. DeleteOfferCommandParser#parse() parses the user input to return a DeleteOfferCommand that will be executed.

Given below is an example usage scenario and how the delete offer mechanism behaves at each step.

Step 1. The user enters delO 1 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a DeleteOfferCommand after parsing.

Step 2. A DeleteOfferCommandParser object is instantiated with the necessary arguments. It will return a DeleteOfferCommand object with the specified Index.

Step 3. The DeleteOfferCommand#execute() method is called which calls the Model#deleteOffer(Offer) method to delete the Offer at the specified Index in Model.

The sequence diagram below shows the delete offer process.

Design considerations

Aspect: Using index specific or attribute specific deletion

• Alternative 1 (current choice): Index specific
  • Pros: Easier implementation and more suited for fast-typing
  • Cons: Might accidentally delete the wrong Offer if Index is mistyped
• Alternative 2: Attribute specific
  • Pros: User does not have to find for specific Index
  • Cons: Many Offer objects might share same attribute such as ListingId and Price

[Implemented] Edit Offer feature

The Edit Offer feature allows users to edit any attribute of an Offer in the UniqueOfferList.

Implementation

To edit an Offer, the EditOfferCommand is executed. The EditOfferCommand extends the Command class.

The EditOfferCommand is parsed by the EditOfferCommandParser. EditOfferCommandParser#parse() parses the user input to return a EditOfferCommand that will be executed.

Given below is an example usage scenario and how the edit offer mechanism behaves at each step.

Step 1. The user enters editO 1 l/Bukit_timah_rd o/1000000 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a EditOfferCommand after parsing.

Step 2. An EditOfferCommandParser object is instantiated with the necessary arguments. It returns a EditOfferCommand with the Index and EditOfferDescriptor as parameters. The EditOfferDescriptor contains the edited information that the edited Offer is supposed to be updated to. In this scenario, we are changing the listingId and Price attribute of the Offer. The EditOfferDescriptor is then updated through the setListing() and setOfferPrice() methods by the EditOfferDescriptor.

Step 3. The EditOfferCommand#execute() method is called which creates the edited Offer using the createEditedOffer method which takes in the Offer to be edited and the EditOfferDescriptor that was created from the previous step. The edited Offer is then checked if it is a duplicate or already exists in the UniqueOfferList through the Offer#isSameOffer() and Model#hasOffer() methods.

An Offer is the same if it contains the exact same Name, Price and ListingId.

Step 4. The Model#setOffer(Offer) method is called to replace the target Offer at the specified Index from earlier. The Model#updateFilteredOfferList() is called to update the UniqueOfferList.

[Implemented] Add Listing feature

Listing

REal-Time manages Listings owned by Clients.

Implementation

To add an Listing object, the AddListingCommand must be executed. This stores the Listing object into the UniqueListingList. Following the command execution pathway, the implementation of adding listings uses the exposed Model#addListing(Listing) method in the Model API.

The AddListingCommand is parsed by the AddListingCommandParser. AddListingCommandParser#parse() parses the user input to return a AddListingCommand object that will be executed.

Given below is an example usage scenario and how the add listings mechanism behaves at each step.

Step 1. The user opens up the REal-Time application for the first time and observes that there are some sample data in the UniqueListingList.

Step 2. The user keys in the command word for adding a listing, addL, followed by the compulsory parameters needed to add a listing, namely the ListingId component prefixed by l/, Address component prefixed by a/, the Owner name component prefixed by n/ and Asking price component prefixed by ap/. In this scenario, the user keys in addL l/007 a/100 Charming avenue n/John Doe ap/800000 into the command box which will execute the AddListingCommandParser to check through the arguments and ensure that the compulsory fields are present. It will then create the ListingId, Address, Name and Price objects needed to instantiate an Listing object. The parser returns a AddListingCommand object with the Listing object ready to be added into Model

Step 3. The AddListingCommand calls the Model#addListing(Listing) to add the listing and its relevant attributes.

Step 4. Depending on whether the UniqueListingList already contains data or is an empty list, the added Listing will be sorted automatically by the ListingId in lexicographical order. This is done using the Collections#sort() method and implementing a natural order by implementing the Comparable interface and overriding the Comparable#compareTo() method.

The sequence diagram below shows the add listing process.

Design considerations

Aspect: Listing-Offer interaction

• Alternative 1 (current choice): Separate Listing and Offer objects
  • Pros: Easier to maintain as they are separate objects, less dependency between each other
  • Cons: Offer references the ListingId instead of Listing objects.
• Alternative 2: Allow Offers to have a Listing attribute instead
  • Pros: Easier to reference between Offer and Listing
  • Cons: Large dependency between the two.

[Implemented] Delete Listing feature

The Delete Listing feature allows users to delete the specified Listing in the UniqueListingList.

Implementation

To delete an Listing object, the DeleteListingCommand must be executed. The DeleteListingCommand extends the Command class.

The DeleteListingCommand is parsed by the DeleteListingCommandParser. DeleteListingCommandParser#parse() parses the user input to return a DeleteListingCommand that will be executed.

Given below is an example usage scenario and how the delete listing mechanism behaves at each step.

Step 1. The user enters delL 1 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a DeleteListingCommand after parsing.

Step 2. A DeleteListingCommandParser object is instantiated with the necessary arguments. It will return a DeleteListingCommand object with the specified Index.

Step 3. The DeleteListingCommand#execute() method is called which calls the Model#deleteListing(Listing) method to delete the Listing at the specified Index in Model.

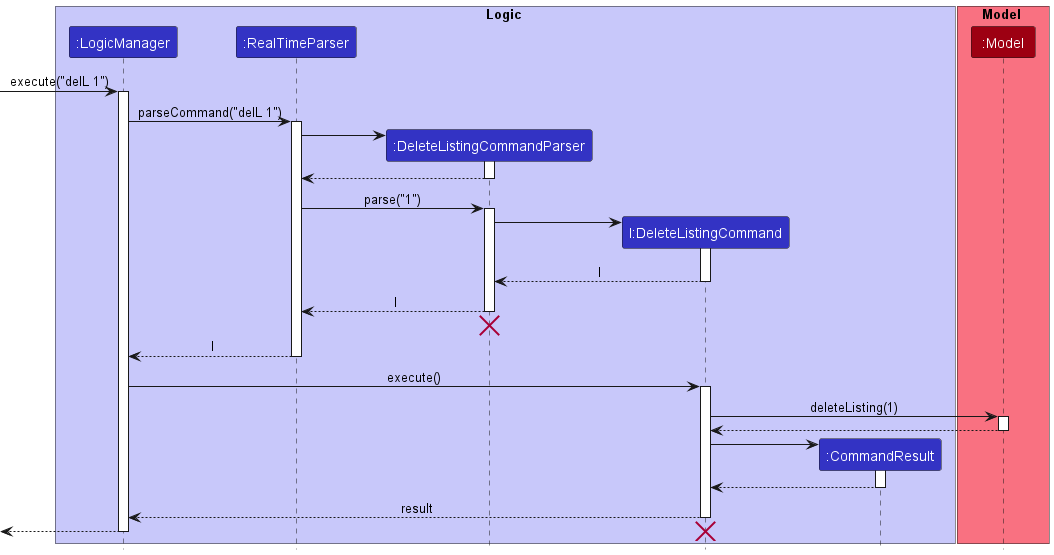

The sequence diagram below shows the delete listing process.

Design considerations

Aspect: Using index specific or attribute specific deletion

• Alternative 1 (current choice): Index specific
  • Pros: Easier implementation and more suited for fast-typing
  • Cons: Might accidentally delete the wrong Listing if Index is mistyped
• Alternative 2: Attribute specific
  • Pros: User does not have to find for specific Index
  • Cons: Many Listing objects might share same attribute such as Asking Price and Owner.

[Implemented] Edit Listing feature

The Edit Listing feature allows users to edit any attribute of an Listing in the UniqueListingList.

Implementation

To edit an Listing, the EditListingCommand is executed. The EditListingCommand extends the Command class.

The EditListingCommand is parsed by the EditListingCommandParser. EditListingCommandParser#parse() parses the user input to return a EditListingCommand that will be executed.

Given below is an example usage scenario and how the edit listing mechanism behaves at each step.

Step 1. The user enters editL 1 l/Bukit_timah_rd ap/1000000 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a EditListingCommand after parsing.

Step 2. An EditListingCommandParser object is instantiated with the necessary arguments. It returns a EditListingCommand with the Index and EditListingDescriptor as parameters. The EditListingDescriptor contains the edited information that the edited Listing is supposed to be updated to. In this scenario, we are changing the listingId and Price attribute of the Listing. The EditListingDescriptor is then updated through the setListing() and setListingPrice() methods by the EditListingDescriptor.

Step 3. The EditListingCommand#execute() method is called which creates the edited Listing using the createEditedListing method which takes in the Listing to be edited and the EditListingDescriptor that was created from the previous step. The edited Listing is then checked if it is a duplicate or already exists in the UniqueListingList through the Listing#isSameListing() and Model#hasListing() methods.

An Listing is the same if it contains the exact same Listing Id and Address.

Step 4. The Model#setListing(Listing) method is called to replace the target Listing at the specified Index from earlier. The Model#updateFilteredListingList() is called to update the UniqueListingList.

[Implemented] Add Meeting feature

Meeting

REal-Time manages Meetings with Clients.

Implementation

To add an Meeting object, the AddMeetingCommand must be executed. This stores the Meeting object into the UniqueMeetingList. Following the command execution pathway, the implementation of adding listings uses the exposed Model#addMeeting(Meeting) method in the Model API.

The AddMeetingCommand is parsed by the AddMeetingCommandParser. AddMeetingCommandParser#parse() parses the user input to return a AddMeetingCommand object that will be executed.

Given below is an example usage scenario and how the add listings mechanism behaves at each step.

Step 1. The user opens up the REal-Time application for the first time and observes that there are some sample data in the UniqueMeetingList.

Step 2. The user keys in the command word for adding a listing, addM, followed by the compulsory parameters needed to add a listing, namely the ListingId component prefixed by l/, Name component prefixed by n/and the Date and Time component prefixed by d/. In this scenario, the user keys in addM l/007 n/John Doe d/2022-10-20 12:00 into the command box which will execute the AddMeetingCommandParser to check through the arguments and ensure that the compulsory fields are present. It will then create the ListingId, Name and LocalDateTime objects needed to instantiate an Meeting object. The parser returns a AddMeetingCommand object with the Meeting object ready to be added into Model

Step 3. The AddMeetingCommand calls the Model#addMeeting(Meeting) to add the listing and its relevant attributes.

Step 4. Depending on whether the UniqueMeetingList already contains data or is an empty list, the added Meeting will be sorted automatically by the LocalDateTime in lexicographical order. This is done using the Collections#sort() method and implementing a natural order by implementing the Comparable interface and overriding the Comparable#compareTo() method.

The sequence diagram below shows the add listing process.

Design considerations

Aspect: Meeting-Listing interaction

• Alternative 1 (current choice): Separate Meeting and Listing objects
  • Pros: Easier to maintain as they are separate objects, less dependency between each other
  • Cons: Offer references the ListingId instead of Listing objects.
• Alternative 2: Allow Offers to have a Listing attribute instead
  • Pros: Easier to reference between Listing and Meeting
  • Cons: Large dependency between the two.

[Implemented] Delete Meeting feature

The Delete Meeting feature allows users to delete the specified Meeting in the UniqueMeetingList.

Implementation

To delete an Meeting object, the DeleteMeetingCommand must be executed. The DeleteMeetingCommand extends the Command class.

The DeleteMeetingCommand is parsed by the DeleteMeetingCommandParser. DeleteMeetingCommandParser#parse() parses the user input to return a DeleteMeetingCommand that will be executed.

Given below is an example usage scenario and how the delete listing mechanism behaves at each step.

Step 1. The user enters delM 1 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a DeleteMeetingCommand after parsing.

Step 2. A DeleteMeetingCommandParser object is instantiated with the necessary arguments. It will return a DeleteMeetingCommand object with the specified Index.

Step 3. The DeleteMeetingCommand#execute() method is called which calls the Model#deleteMeeting(Meeting) method to delete the Meeting at the specified Index in Model.

The sequence diagram below shows the delete listing process.

Design considerations

Aspect: Using index specific or attribute specific deletion

• Alternative 1 (current choice): Index specific
  • Pros: Easier implementation and more suited for fast-typing
  • Cons: Might accidentally delete the wrong Meeting if Index is mistyped
• Alternative 2: Attribute specific
  • Pros: User does not have to find for specific Index
  • Cons: Many Meeting objects might share same attribute such as Listing Id and Name.

[Implemented] Edit Meeting feature

The Edit Meeting feature allows users to edit any attribute of an Meeting in the UniqueMeetingList.

Implementation

To edit an Meeting, the EditMeetingCommand is executed. The EditMeetingCommand extends the Command class.

The EditMeetingCommand is parsed by the EditMeetingCommandParser. EditMeetingCommandParser#parse() parses the user input to return a EditMeetingCommand that will be executed.

Given below is an example usage scenario and how the edit listing mechanism behaves at each step.

Step 1. The user enters editM 1 l/Bukit_timah_rd d/2022-10-20 23:59 in the command box. This calls the LogicManager#execute() method which calls the RealTimeParser#parse method to be executed and will determine that the command is a EditMeetingCommand after parsing.

Step 2. An EditMeetingCommandParser object is instantiated with the necessary arguments. It returns a EditMeetingCommand with the Index and EditMeetingDescriptor as parameters. The EditMeetingDescriptor contains the edited information that the edited Meeting is supposed to be updated to. In this scenario, we are changing the listingId and Time attribute of the Meeting. The EditMeetingDescriptor is then updated through the setMeeting() and setMeetingPrice() methods by the EditMeetingDescriptor.

Step 3. The EditMeetingCommand#execute() method is called which creates the edited Meeting using the createEditedMeeting method which takes in the Meeting to be edited and the EditMeetingDescriptor that was created from the previous step. The edited Meeting is then checked if it is a duplicate or already exists in the UniqueMeetingList through the Meeting#isSameMeeting() and Model#hasMeeting() methods.

An Meeting is the same if it contains the exact same LocalDateTime.

Step 4. The Model#setMeeting(Meeting) method is called to replace the target Meeting at the specified Index from earlier. The Model#updateFilteredMeetingList() is called to update the UniqueMeetingList.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: Real Estate Agents

• has a need to manage a significant number of contacts
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value propositions:

• manage clients faster than a typical mouse/GUI driven app
• Real-Estate agents with many clients may struggle to juggle their viewings and manage meetings.
• Track properties to their owners as well as potential buyers
• Centralised place to store client information, what they are looking for

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	new user	see usage instructions	refer to instructions when I forget how to use the App
* * *	user	add a new client	see all my clients in one list
* * *	user	add a new listing	see all my listings in one list
* * *	user	add my client’s offer	track all my clients’ current offers
* * *	user	add my client’s meeting	track all my meetings with clients
* * *	user	delete a client	remove entries that I no longer need
* * *	user	delete a listing	remove entries that I no longer need
* * *	user	delete an offer	remove entries that I no longer need
* * *	user	delete a meeeting	remove entries that I no longer need
* * *	user	find a client by name	locate details of persons without having to go through the entire list
* * *	user	edit an client	update any changes to a client’s details
* * *	user	edit an listing	update any changes to a listing’s details
* * *	user	edit an offer	update any changes to a client’s offer
* * *	user	edit an meeting	update any changes to a client’s meeting
*	user with many clients in the address book	sort client by name	locate a person easily
*	user	save my data	store my data for future use

{More to be added}

Use cases

(For all use cases below, the System is the RealTime and the Actor is the user, unless specified otherwise)

Use case: UC01 - Reorder the list

MSS

1. User requests to list persons
2. RealTime shows a list of persons
3. User requests to switch a specific person in the list with another

4. RealTime swaps their index

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. RealTime shows an error message.

    Use case resumes at step 2.

Use case: UC02 - Delete a person

MSS

1. User requests to list persons
2. RealTime shows a list of persons
3. User requests to delete a specific person in the list

4. RealTime deletes the person

   Use case ends.

Extensions

• 2a. The list is empty.

  Use case ends.

• 3a. The given index is invalid.

  • 3a1. RealTime shows an error message.

    Use case resumes at step 2.

Use case: UC03 - Add an offer

MSS

1. User requests to add an offer.

2. RealTime adds the offer.

   Use case ends.

Extensions

• 1a. User enters invalid input

  • 1a1. RealTime shows an error message.

    Use case resumes at Step 1.

Use case: UC04 - Edit an offer

MSS

1. User requests to edit an offer.

2. REal-Time edits the offer.

   Use case ends.

Extensions

• 1a. User enters invalid input
  • 1a1. REal-Time shows an error message. Use case resumes at Step 1.

Use case: UC05 - Delete an offer

MSS

1. User requests to delete an offer.

2. REal-Time deletes the offer.

   Use case ends.

Extensions

• 1a. User enters invalid input

  • 1a1. REal-Time shows an error message.

    Use case resumes at Step 1

{More to be added}

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 11 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. Application should start in under a few seconds.

{More to be added}

Glossary

• Mainstream OS: Windows, Linux, Unix, OS-X
• Client: A person that is interested in purchasing or selling a property
• Offer: A price that the purchaser is willing to pay for a property
• Listing: A property that is being advertised
• Meeting: A scheduled appointment between the Real-Estate agent and client

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

3. { more test cases …​ }

Adding a Listing

1. Adding a listings

   1. Prerequisites: The owner of the Listing must already be added as a Person.
   2. Test case: listing id/001 a/100 Charming Avenue n/Alex Yeoh ap/100000
      Expected: First a new Listing is created. Its id will be the contents after the ‘id/’ prefix. Its Address will be the contents after the ‘a/’ prefix. Its owner’s name will be the contents after the ‘n/’ prefix. And the asking price of the Listing will be the contents after the ‘ap/’ prefix. Details of the new listing will be shown in the status message.
   3. Other incorrect delete commands to try: listing id/... ap/.. n.. a/.., listing, ...
      Expected: Error message to warn incorrect input format.

2. { more test cases …​ }

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

2. { more test cases …​ }

Saving data

1. Dealing with missing/corrupted data files

   1. {explain how to simulate a missing/corrupted file, and the expected behavior}

2. { more test cases …​ }

Deleting a client

1. Deleting a person while all client are being shown

   1. Prerequisites: List all client using the list command. Multiple client in the list.
   2. Test case: delete 1
      Expected: First contact is deleted from the list. Details of the deleted contact shown in the status message. Timestamp in the status bar is updated.
   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.
   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Adding an Offer

1. Adding an offer while all offers are being shown
   1. Prerequisites: The Offer being added must not exist in the current list.

   2. Test case: addO n/John Doe l/BEDOK_SOUTH o/700000

      Expected: An Offer with name John Doe, listing ID BEDOK_SOUTH and offer price of 700000 will be added to the list.

   3. Test case: addO n/Jackson Ang l/CALIFORNIA o/-10000

      Expected: No Offer will be added. Error message will appear in the response box.

   4. Other incorrect commands to try: addO n/Bruce Wayne l/YISHUN o/123p123

Deleting an Offer

1. Deleting an offer while all offers are being shown
   1. Prerequisites: At least one Offer has to exist in the list.

   2. Test case: delO 1

      Expected: First Offer is deleted from the list. Details of the deleted offer shown in the status message.

   3. Test case: delO 0

      Expected: No Offer is deleted. Error details shown in the status message.

   4. Other incorrect commands to try: delO -1, delO a

Editing an Offer

1. Editing an offer while all offers are being shown
   1. Prerequisites: At least one Offer must exist to be edited.
   2. Test case: editO 1 n/John Doe
      Expected: First Offer has the name changed to John Doe.
   3. Test case: editO 1 o/-1000
      Expected: No Offer is edited. Error details shown in the status message.

Adding a Meeting

1. Adding a meeting while all meeting are being shown
   1. Prerequisites: The Meeting being added must not exist in the current list.

   2. Test case: addM n/John Doe l/BEDOK_SOUTH d/2022-10-12 23:59

      Expected: A Meeting with name John Doe, listing ID BEDOK_SOUTH and dateTime 2022-10-12 23:59 will be added to the list.

   3. Test case: addM n/Jackson Ang l/CALIFORNIA d/23:59 2022-12-3

      Expected: No Meeting will be added. Error message will appear in the response box.

   4. Other incorrect commands to try: addM n/Bruce Wayne l/YISHUN d/2022-100-100 27:20

Deleting a Meeting

1. Deleting a meeting while all meetings are being shown
   1. Prerequisites: At least one Meeting has to exist in the list.

   2. Test case: delM 1

      Expected: First Meeting is deleted from the list. Details of the deleted meeting shown in the status message.

   3. Test case: delM 0

      Expected: No Meeting is deleted. Error details shown in the status message.

   4. Other incorrect commands to try: delM -1, delM a

Editing a Meeting

1. Editing a meeting while all meetings are being shown
   1. Prerequisites: At least one Meeting must exist to be edited.
   2. Test case: editM 1 n/John Doe
      Expected: First Meeting has the name changed to John Doe.
   3. Test case: editM 1 d/2023-30-20 12:00
      Expected: No Meeting is edited. Error details shown in the status message.
